We understand that every house is unique and everyone need power when grid power is unreliable or unavailable due to frequent outages.
People desire energy independence and want to reduce reliance on utility companies, especially when they live in remote areas without access to the main electricity grid. YouthPOWER aims to minimize electricity costs in the long term by generating their own power, especially environmental concerns drive the desire to use renewable energy sources like solar.
How we function the YouthPOWER offgrid inverter and battery system:
Convert DC power from solar panels to lifpo4 storage batteries to AC power for household appliances.
Manage battery charging to optimize efficiency and lifespan.
Store excess energy in batteries for using during low sunlight.
Provide backup power during grid outages.
Monitor energy flow and system status for maintenance and optimization, regulate voltage and frequency for stable power supply.
Support integration of renewable energy sources with grid-independent power supply.
No worry about the inverter & battery communication, manage charging and discharging cycles to maximize battery lifespan.
Battery Module ：
Single battery 51.2V 100AH 16S1P

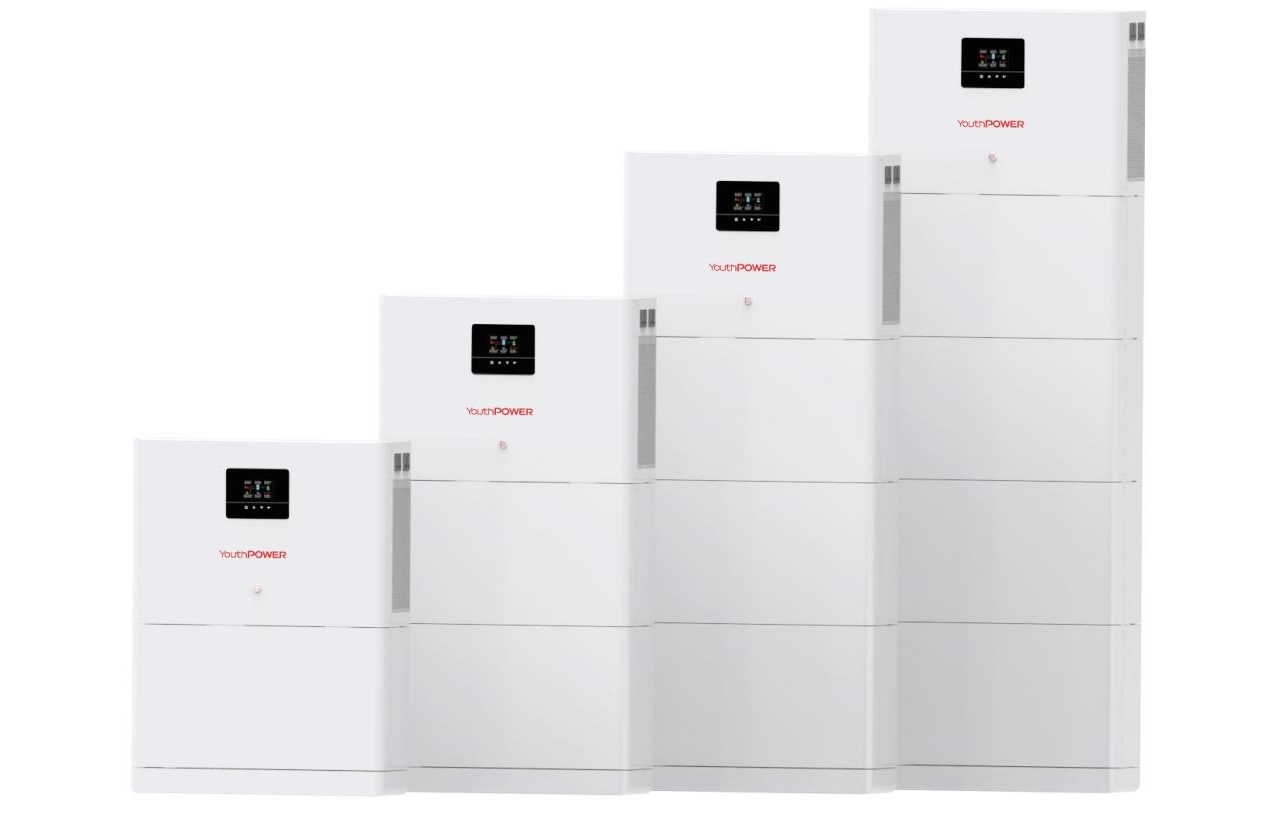

Support battery storage parallel, suggest max.4 batteries with 20KWH
| Product Specification | ||||
| MODEL | YP-6KW-LV1 | YP-6KW-LV2 | YP-6KW-LV3 | YP-6KW-LV4 |
| Phase | 1-phase | |||
| Maximum PV input power | 6500W | |||
| Rated output power | 6200W | |||
| Maximum soor charging current | 120A | |||
| PV Input(DC) | ||||
| Nominal DC voltage/Maximum DC woltage | 360VDC/500VDC | |||
| Start-up voltage/lnitigl feeding voltage | 90VDC | |||
| MPPT voltage range | 60~450VDC | |||
| Numnber of MPPT trackers/oximumn input current | 1/22A | |||
| Grid Output(AC) | ||||
| Nominal output voltage | 220/230/240VAC | |||
| Outout voltage range | 195.5~253VAC | |||
| Nominal output ourrent | 27.0A | |||
| Power factor | ＞0.99 | |||
| Feed-in grid frequency range | 49~51±1Hz | |||
| Battery Data | ||||
| Rate voltage(vdc) | 51.2 | |||
| Cell combination | 16S1P*1 | 16S1P*2 | 16S1P*3 | 16S1P*4 |
| Rate capacity(AH) | 100 | 200 | 300 | 400 |
| Energy storage(KWH) | 5.12 | 10.24 | 15.36 | 20.48 |
| Discharge cut-off voltage(VDC) | 43.2 | |||
| Charge cut-off voltage(VDC) | 58.4 | |||
| Efficiency | ||||
| Maximum conversion efficiency(sloar to AC) | 98% | |||
| Two Load Output Power | ||||
| Full load | 6200W | |||
| Maximum main load | 6200W | |||
| Maximum second load（battery mode） | 2067W | |||
| Main load cut off voltage | 44VDC | |||
| Main load retumn voltage | 52VDC | |||
| AC Input | ||||
| AC start-uo voltage/Auto restort voltage | 120-140WAC/80VAC | |||
| Aoceptable input voltage range | 90-280VAC or170-280VAC | |||
| Maximum AC inout current | 50A | |||
| Nominal ooergting frequency | 50/60H2 | |||
| Surge powver | 10000W | |||
| Battery Mode Output(AC) | ||||
| Nominal output voltage | 220/230/240VAC | |||
| Outout waveform | Pure sine wave | |||
| Efficiency（DC to AC) | 94% | |||
| Charger | ||||
| Maximum charging current (solar to AC） | 120A | |||
| Maximum AC charging current | 100A | |||
| Physical | ||||
| Dimension D*W*H(mm) | 192*640*840 | 192*640*1180 | 192*640*1520 | 192*640*1860 |
| Weight(kg) | 64 | 113 | 162 | 211 |
| Interface | ||||
| Communication port | RS232WWIFIGPRS/LITHIUM BATTERY | |||
