The YouthPOWER 20kWH battery storage is a high-efficiency, long-life, low-voltage home energy storage solution. Featuring a user-friendly finger-touch LCD display and a durable, impact-resistant casing, this 20kwh solar system offers an impressive energy storage capacity of 20.48kWh with its nominal voltage of up to 51.2V and a substantial lithium battery capacity of 400Ah. The wheel design makes installation and maintenance easy, while the new high-performance A-grade automotive 3.2V 100Ah lifepo4 cells from one of China's top ten lithium cell manufacturers ensure solid safety and exceptional reliability for users.
In addition, the build in reliable 200A intelligent BMS board further enhances its safety features. The high stability RS485 and CANBUS communication interfaces provide fast data transmission speeds, providing flexibility and scalability for users' needs. Moreover, it is compatible with most inverters on the market such as Deye, Victron, Solis, Growatt, etc., making it an excellent choice for various energy requirements.
Here share the test videos for YouthPOWER 20kWh battery communicate with Deye and Victron inverters:
▶ With Deye inverter
▶ With Victron inverter
Exciting news! Our 20kWh solar system are now available for immediate shipment to the vibrant nation of South Africa, providing customers with long-term, reliable and cost-effective energy storage solutions.
Here is the technical specification:
|
Model No |
YP51400 20KWH |
|
Nominal Parameters |
|
|
Voltage |
51.2V |
|
Material |
Lifepo4 |
|
Capacity |
400Ah |
|
Energy |
20.48KwH |
|
Dimensions (L x W x H) |
600x846x293 mm |
|
Weight |
205KG |
|
Basic Parameters |
|
|
Life time(25° C) |
Expected Life time |
|
Life cycles(80% DOD, 25° C) |
6000 Cycles |
|
Storage time / temperature |
5 months @ 25° C; 3 months @ 35° C; 1 month @ 45° C |
|
Operation temperature |
﹣20° C to 60° C @60+/-25% Relative Humidity |
|
Storage temperature |
0° C to 45° C @60+/-25% Relative Humidity |
|
Lithium Battery Standard |
UL1642(CelI), IEC62619, UN38.3, MSDS, CE-EMC |
|
Enclosure protection rating |
IP21 |
|
Electrical Parameters |
|
|
Operation voltage |
51.2 Vdc |
|
Max. charging voltage |
58 Vdc |
|
Cut-off-Discharge Voltage |
46 Vdc |
|
Max, charging and discharging current |
100A Max. Charge and 200A Max. Discharge |
|
Compatibility |
Compatible with all standard off grid inverters and charge controllers. |
|
Warranty Period |
warranty 5-10 years |
|
Remarks |
Youth Power battery BMS must be wired in parallel only. |
It is well suited to various application scenarios and plays a crucial role in providing reliable solutions for energy storage and utilization, including but not limited to:
A. Household energy storage system
B. Backup power supply for small business premises
C. Solar power supply in areas facing power shortages
D. Off-grid power supply for remote areas
E. Small-scale renewable energy systems
F. Government institutions: finance, transportation, government buildings, and more.
The manual link provided below offers an easy and simple installation and operation guide:
If you are looking for a reliable 20kwh battery storage factory, feel free to contact sales@youth-power.net today!

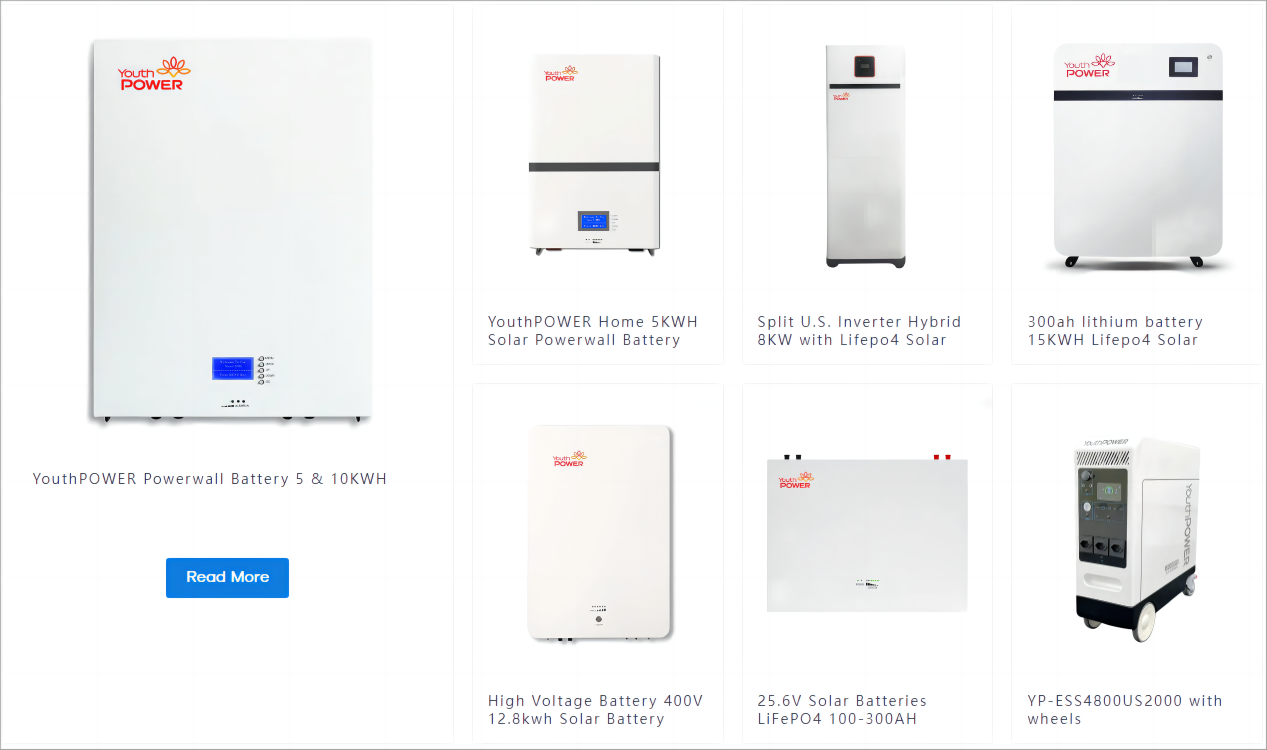

For more related product information, kindly click here:
Post time: Apr-26-2024
