5KWH 48V 51.2V 100AH LiFePO4 Powerwall Battery

YouthPOWER 5KWh LiFePO4 Powerwall Battery offers two battery options: a 4.8kWh 48V 100Ah lithium ion battery and a 5.12kWh 51.2V 100 Ah lithium battery. This energy storage solution is highly efficient, safe, and durable, catering to the needs of residential and small commercial users.

Utilizing advanced Lithium Iron Phosphate (LiFePO4) technology, it offers exceptional cycle life, high energy density, and outstanding safety features. With options for both 48V and 51.2V voltage, this 5kWh battery meets a wide range of energy storage requirements including solar storage systems, off-grid setups, and backup power solutions while reducing electricity costs and enhancing energy independence.

Item：YP48100-4.8KWH V2 / YP51100-5.12KWH V2

Ask For Price Download

Product Detail

Product Tags

Product Specifications

Model No	YP48100-4.8KWH V2
	YP51100-5.12KWH V2
Nominal Parameters
Voltage	48 V/51.2V
Capacity	100 Ah
Energy	4.8 / 5.12 kWh

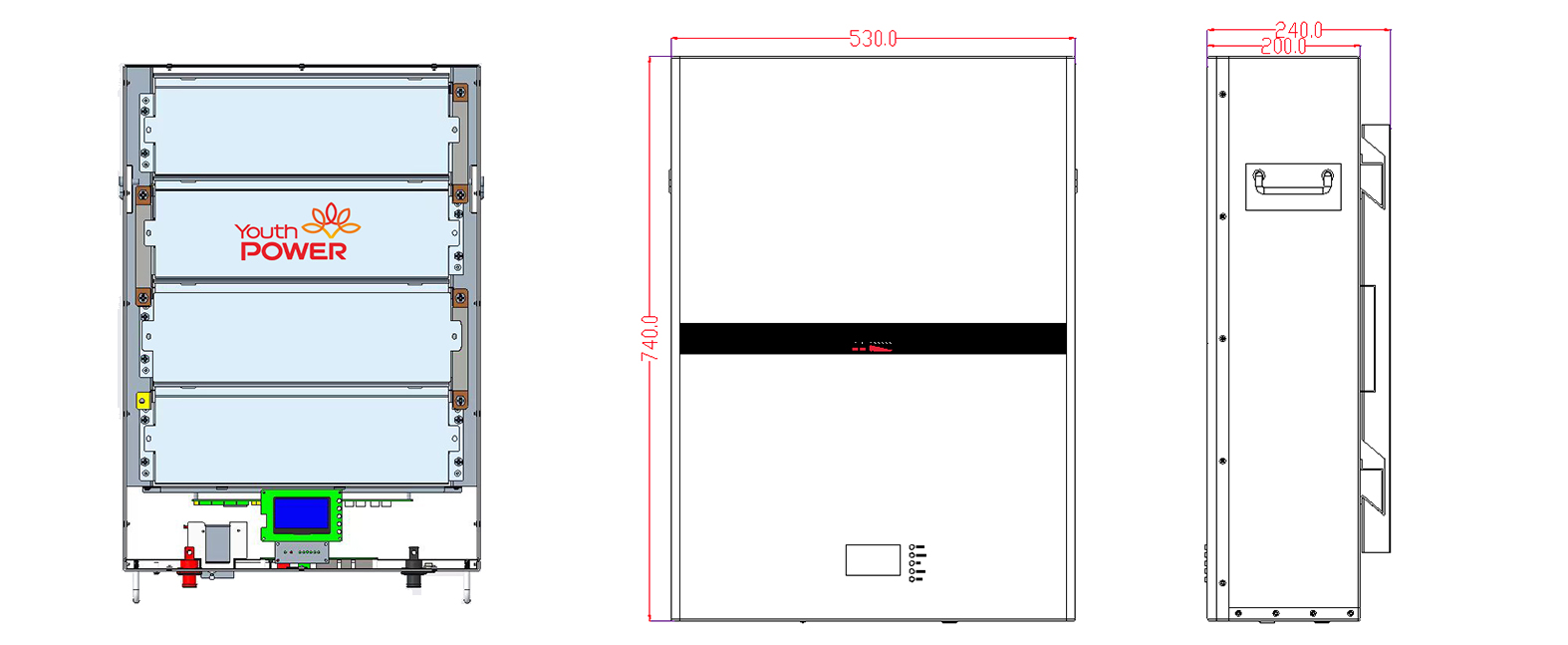

Dimensions (L x W x H)	740530200mm
Weight	66/70kg
Basic Parameters
Life time(25℃)	10 Years
Life cycles(80% DOD, 25℃)	6000 Cycles
Storage time & temperature	5 months @ 25℃; 3 months @ 35℃; 1 month @ 45℃
Lithium Battery Standard	UL1642(Cell), IEC62619, UN38.3, MSDS ,CE, EMC
Enclosure protection rating	IP21
Electrical Parameters
Operation voltage	48 Vdc
Max. charging voltage	54 Vdc
Cut-off Discharge Voltage	42 Vdc
Max. charging and discharging current	100A (4800W)
Compatibility	Compatible with all standard offgrid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio.
Warranty Period	5-10 Years
Remarks	Youth Power wall battery BMS must be wired in parallel only. Wiring in series will void the warranty.
Finger Touch Version	Available only for 51.2V 200AH, 200A BMS

Product Video

Product Details

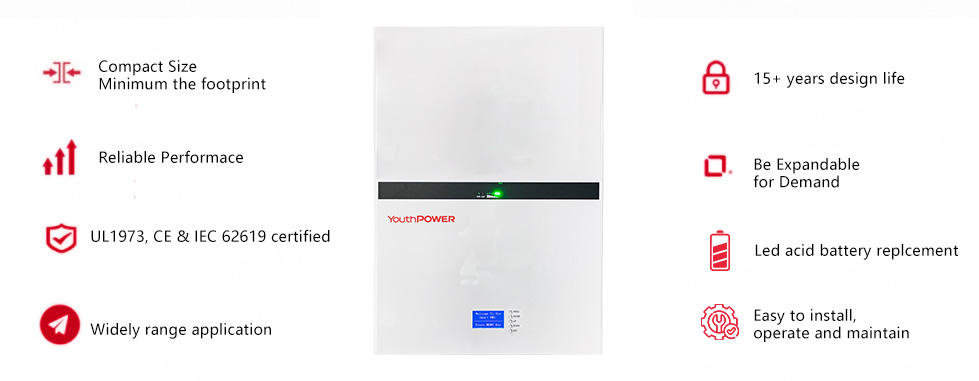

Product Features

This 5KWh 48V/51.2V 100Ah LiFePO4 battery is designed to deliver unmatched performance, reliability, and safety for your energy storage needs. With its advanced lithium iron phosphate technology, this 5kWh lithium battery provides long-lasting power, high efficiency, and robust protection, making it an excellent choice for solar storage battery systems, off-grid setups, and backup power solutions.

★ High Capacity and Efficiency
Deliver 10kWh of energy storage to meet daily power requirements.
★ Long Cycle Life
Support over 6,000 cycles, ensuring a lifespan of more than 10 years.
★ Superior Safety
LiFePO4 technology provides excellent thermal stability, making it fireproof and explosion-proof.'
★ Intelligent Battery Management System (BMS)
Offer real-time monitoring and multiple protections, including overcharge, over-discharge, and over-temperature safeguards.
★ Scalable and Compatible
Support parallel connections, easily adaptable to various energy storage applications.

Product Applications

YouthPOWER 5KWh 48V/51.2V 100Ah LiFePO4 Battery is compatible with most inverters available in the market, and it is ideal for various energy storage needs.

It supports home energy storage systems, storing excess power for nighttime use and lowering energy costs. In off-grid setups, it ensures reliable energy in remote areas. As a battery backup power supply, it provides uninterrupted power during outages. Perfect for small commercial solar battery storage, it optimizes energy use and enhances efficiency. Whether for sustainability, energy independence, or emergency backup, this 5kWH LiFePO4 battery delivers reliable, high-performance power backup solutions tailored to diverse demands.

Product Certification

YouthPOWER 51.2 volt/48 volt LiPO Battery 100Ah is certified to meet international safety and quality standards. It includes MSDS for safe handling, UN38.3 for transport safety, and UL1973 for energy storage reliability. Compliant with IEC62619 (CB) and CE-EMC, it ensures global safety and electromagnetic compatibility. These certifications highlight its superior safety, durability, and performance, making it an ideal energy storage solution for residential and small commercial energy storage.

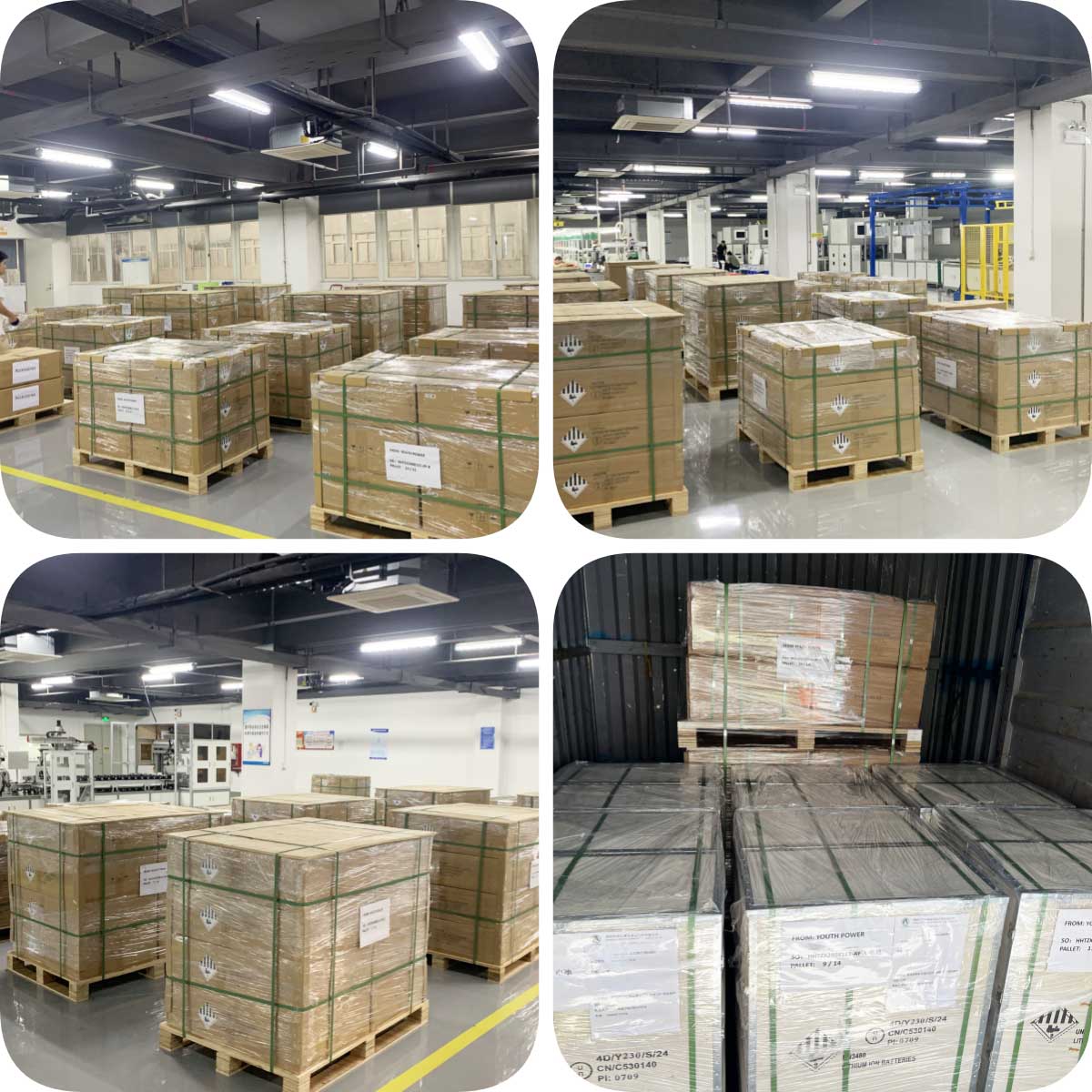

Product Packing

YouthPOWER 5kWh 48 volt solar battery is securely packaged using durable foam and sturdy cartons to ensure protection during transit. Each package is clearly labeled with handling instructions and complies with UN38.3 and MSDS standards for international shipping. With efficient logistics, we offer fast and reliable shipping, ensuring the battery reaches customers quickly and safely. For global delivery, our robust packing and streamlined shipping processes ensure that the product arrives in perfect condition, ready for installation.

Packing Details:
