512V 100AH 51.2KWh Commercial Battery Storage

The YouthPOWER high-voltage 51.2kWH-512V 100AH commercial battery storage system uses UL1973, CE-EMC and IEC62619 certified LiFePO4 rack battery modules, offering high energy density and a long lifespan. This modular high voltage commercial battery system allows for easy expansion, offering simple bracket and cabinet configuration options. It is designed to be easily installed, operated, and maintained.

This high voltage 51.2kWH-512V 100Ah battery storage ESS provides stable high-voltage power support, making it suitable for large-scale commercial energy storage needs. Its benefits include an extended service life, fast charging and discharging abilities, low maintenance costs, and minimal environmental impact, making it an ideal choice for modern energy management.

Ask For Price Download

Product Detail

Product Tags

Product Specifications

Single Battery Module	5.12kWh-51.2V 100Ah LiFePO4 rack battery
Whole Battery Storage ESS	51.2kWh - 512V 100Ah (10 units in series)

MODEL		YP-R-HV20	YP-R-HV25	YP-R-HV30	YP-R-HV35	YP-R-HV40 YP-R-HV45		YP-R-HV50
Cell chemistry		LiFePO4
Module energy(kWh)		5.12
Module nominal voltage(V)		51.2
Module capacity(Ah)		100
Cell model/Configuration		3.2V 100Ah /64S1P	3.2V 100Ah /80S1P	3.2V 100Ah /96S1P	3.2V 100Ah /112S1P	3.2V 100Ah /128S1P	3.2V 100Ah /144S1P	3.2V 100Ah /160S1P
System nominal voltage(V)		204.8	256	307.2	358.4	409.6	460.8	512
System operating voltage(V)		172.8~224	215~280	259.2~336	302.4~392	345.6~448	388.8~504	432~560
System energy(kWh)		20.48	25.6	30.72	35.84	40.96	46.08	51.2
Charge/ Discharge Current (A)	Recommend	50
	Max	100
Working temperature		Charge:0℃~55℃; Discharge:-20℃~55℃
Communication port		CAN2.0/RS485/WIFI
Humidity		5~85% RH Humidity
Altitude		≤2000 m
IP rating of enclosure		IP20
Dimension (WDH,mm)		538492791	538492941	5384921091	5384921241	5384921391	5384921541	5384921691
Weight approximate (kg)		195	240	285	330	375	420	465
Installation location		Rack Mounting
Storage temperature (℃)		0℃~35℃
Recommend depth of discharge		90%
Cycle life		25±2℃, 0.5C/0.5C, EOL70%≥6000

Product Details

Product Feature

⭐ Convenient

Quick installation, standard of 19-Inch embedded design module is easy to install and maintain.

⭐ Safe and Reliable

Cathode material is made from LiFePO4 with high safety performance and long cycle life. The module has less self-discharge up to 6 months without charging it on shelf, with no memory effect, and excellent performance in shallow charge and discharge.

⭐ Intelligent BMS

It has protective functions, including over-discharge,over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state, balance current and voltage of each cell.

⭐ Eco-friendly

The entire module is non-toxic, non-polluting, and environmentally friendly.

⭐ Flexible Configuration

Multiple battery modules can be used in parallel for expanding capacity and power. Support for USB upgrades, WiFi upgrade(optional), and remote upgrades (compatible with the Deye inverter).

⭐ Wide Temperature

Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.

Product Applications

A commercial battery storage system is an environmentally friendly technology designed to store electrical energy for future use. These systems play a crucial role in a business's energy infrastructure, allowing them to store electricity during low demand periods and release it during high demand.

YouthPOWER commercial solar battery can be installed in various locations, including factories, commercial buildings, large retail stores, and critical nodes on the grid.

They are typically installed on the ground or walls near the building's interior or exterior, and are monitored and operated through a smart control system.

Related commercial applications:

● Micro-grid systems
● Grid regulation
● Industrial electricity usage
● Commercial buildings
● Commercial UPS battery backup
● Hotel backup power supply

YouthPOWER commercial battery applications

Product Certification

YouthPOWER residential and commercial lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received certifications from various international organizations, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.

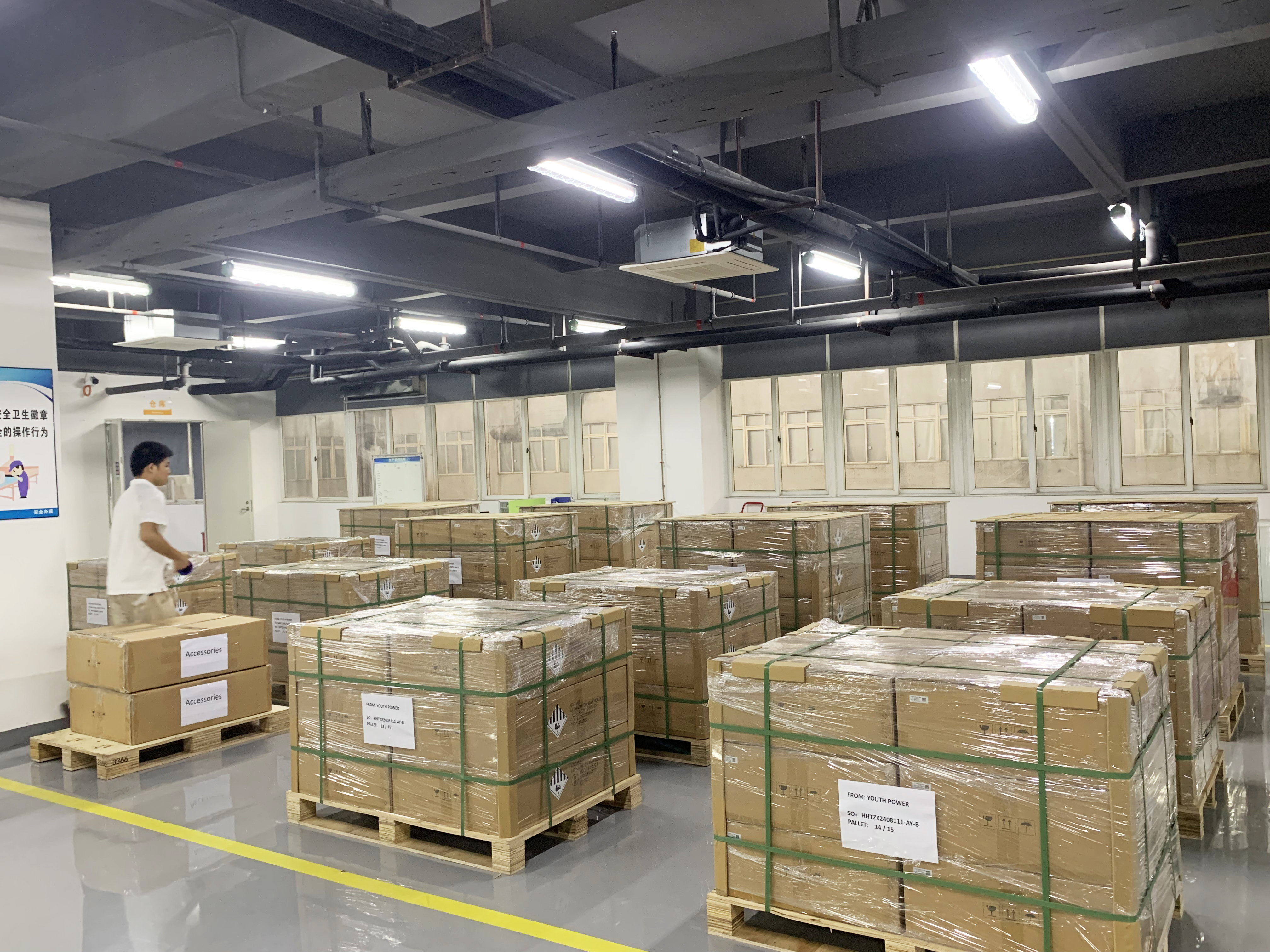

Product Packing

YouthPOWER adheres to strict shipping packaging standards to guarantee the impeccable condition of our high-voltage commercial battery storage systems during transit. Each battery is carefully packaged with multiple layers of protection to effectively protect against any potential physical damage. Our efficient logistics system ensures prompt delivery and timely receipt of your order.
