358.4V 280AH LiFePO4 100KWH Commercial Solar Battery System

YouthPOWER industrial and commercial battery storage systems 85kWh~215kWh 280Ah series are designed for both indoor and outdoor C&I energy storage applications. Each commercial battery pack utilizes high-quality EVE 3.2V 280Ah LiFePO4 cells to provide stable and reliable high-voltage power support, making them ideal for large-scale commercial energy storage needs in commercial and industrial environments. They effectively control energy costs and enhance resilience.

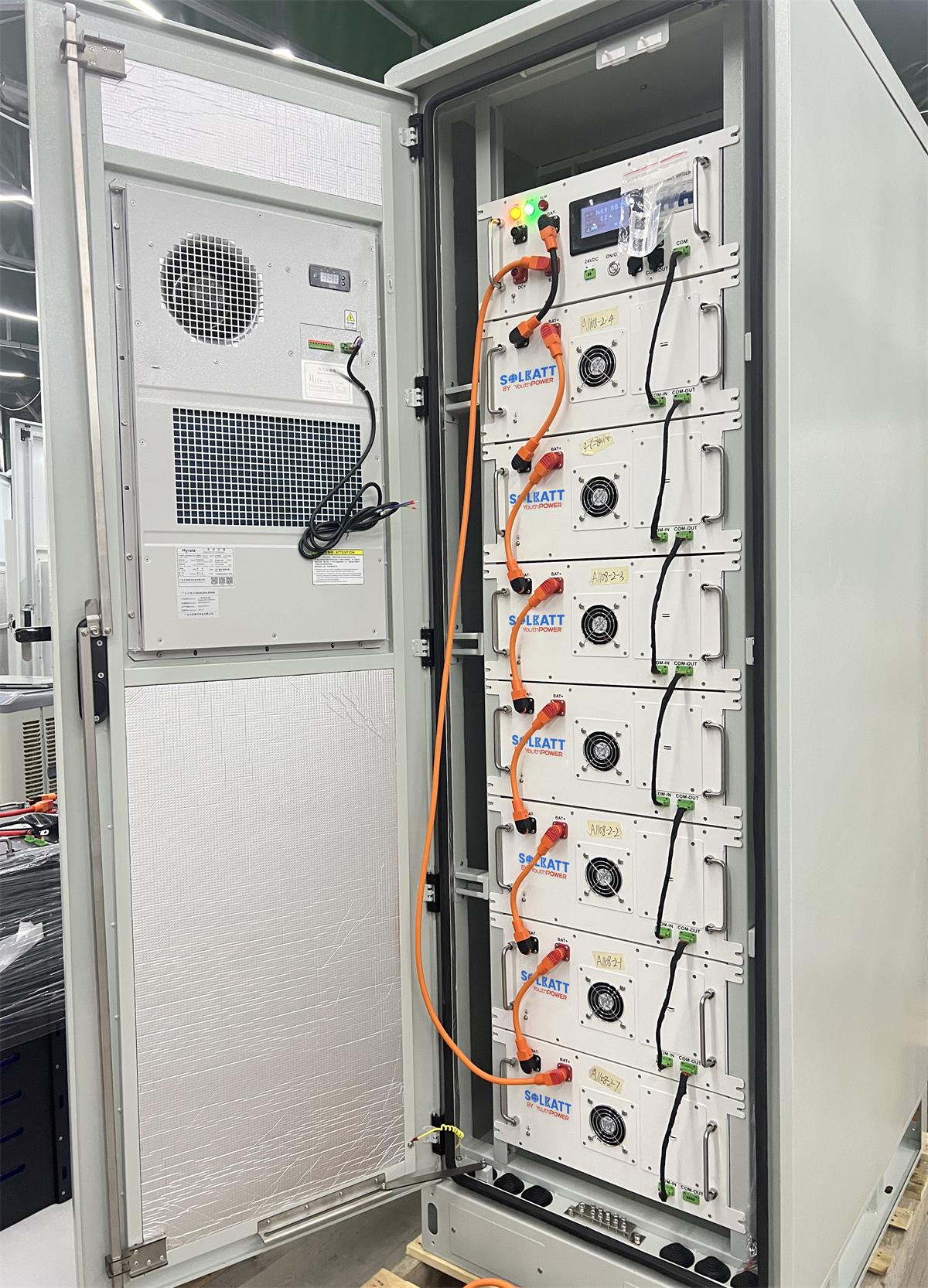

YouthPOWER commercial solar battery-358.4V 280Ah 100 kWh solar system is one of our commercial lithium ion 280Ah battery models, easy expansion and offering a option between simple rack and cabinet configurations. The installation, operation, and maintenance processes are highly convenient. This 100kWh-358.4V 280Ah high voltage solar battery boasts an extended service life, rapid charging and discharging capabilities, low maintenance costs, as well as minimal environmental impact, making it the ideal solution for modern energy management.

Ask For Price Download

Product Detail

Product Tags

Product Specifications

Battery Cell	EVE 3.2V 280Ah LiFePO4 cell

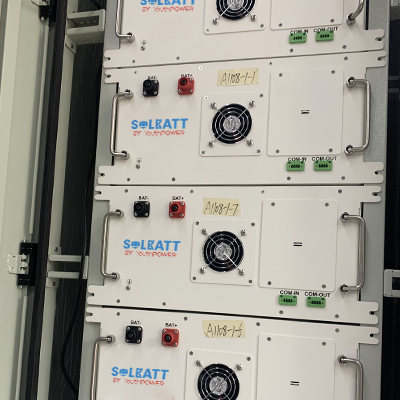

Single Battery Module	14.336kWh-51.2V 280Ah LiFePO4 rack battery
Whole Commercial ESS	100.352kWh- 358.4V 280Ah (7 units in series)

Model	YP-280HV 358V-100KWH
Combination method	112S1P
Rated Capacity	Typical:280Ah Minimum:276Ah
Factory Voltage	358.4-369.6V
Voltage at end of Discharge	≤302.4V
Charging Voltage	392V
Internal Impedance	≤110mΩ
Max Charging Current (Icm)	140A
Limited Charging Voltage (Ucl)	408.8V
Max Discharging current	140A
Discharge Cut-oﬀ voltage (Udo)	280V
Operation Temperature Range	Charge:0~55℃ Discharge: -20~55℃
Storage Temperature Range	-20℃~25℃
Single module Size/weight	778.5442230mm /About 125Kg
Main control box size/weight	620442222mm /About 22Kg
System size/weight	5507761985mm /About 850Kg

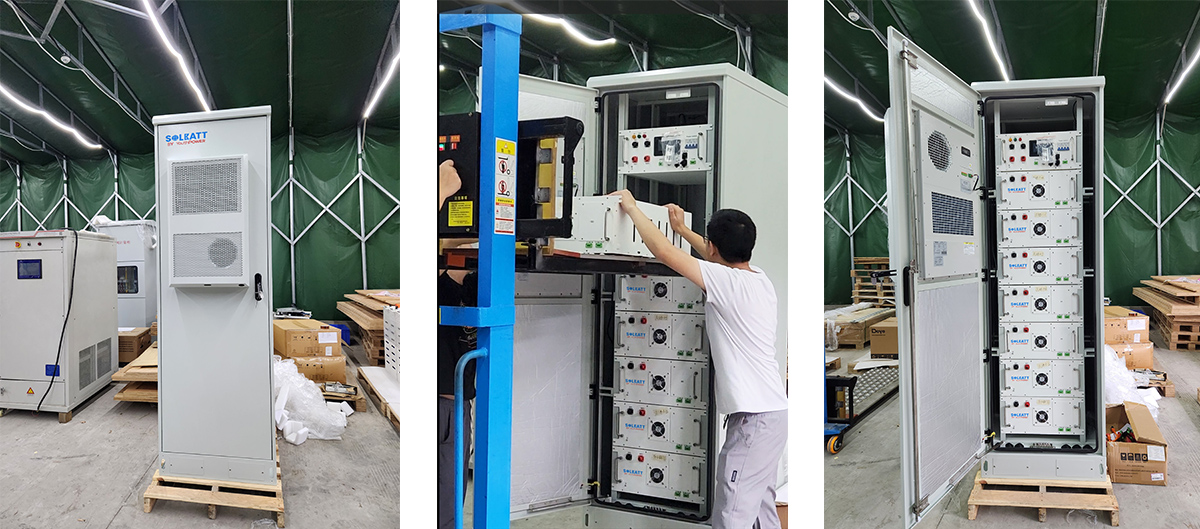

Product Details

Product Feature

⭐ Safe and Reliable

High-quality, integrated EVE 280AH LFP cell with a high cycle life of >6000 cycles, ensuring cells, modules, and BMS.

⭐ Intelligent BMS

It has protective functions, including over-discharge,over-charge,over-current and over-high or low temperature. The system can automatically manage charge and discharge state, balance current and voltage of each cell.

⭐ Optimal Electricity Cost

Long cycle life and superior performance.

⭐ Eco-friendly

The entire module is non-toxic, non-polluting, and environmentally friendly.

⭐ Flexible Mounting

Plug & play, no additional wiring connection

⭐ Wide Temperature

Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.

⭐ Compatibility

Compatible with top inverter brands: GOODWE ET, GROWATT SPH, Deye, Megarevo, Solis.

Product Applications

A commercial battery storage system is an environmentally friendly technology designed to store electrical energy for use.

These systems play a crucial role in a business's energy infrastructure, allowing them to store electricity during low demand periods and release it during high demand.

YouthPOWER high volatge commerial and industrial energy storage system 280Ah series can provide industrial and commercial users with a complete solution of outdoor integrated PV & energy storage system.

It can be widely used in scenarios such as charging stations, factories, industrial parks, and commercial buildings.

Related C&I energy storage applications:

● Distributed new energy
● Industry and commercial
● Charging station
● Data center
● Household use
● Micro grid

YouthPOWER commercial battery applications

Product Certification

YouthPOWER residential and commercial lithium battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received certifications from various international organizations, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our products meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial applications, catering to the diverse needs and expectations of our customers.

Product Packing

YouthPOWER high-voltage commercial energy storage battery systems are certified with UN38.3 and strictly control the packaging quality during shipment to ensure that each battery system is protected by multiple layers to prevent any damage during transportation.

With the use of advanced shock-proof materials and precise packaging, we guarantee the safety of battery storage.

Our efficient and professional logistics partners guarantee prompt delivery and strive to provide high-quality products to customers in the shortest amount of time to protect your business.
