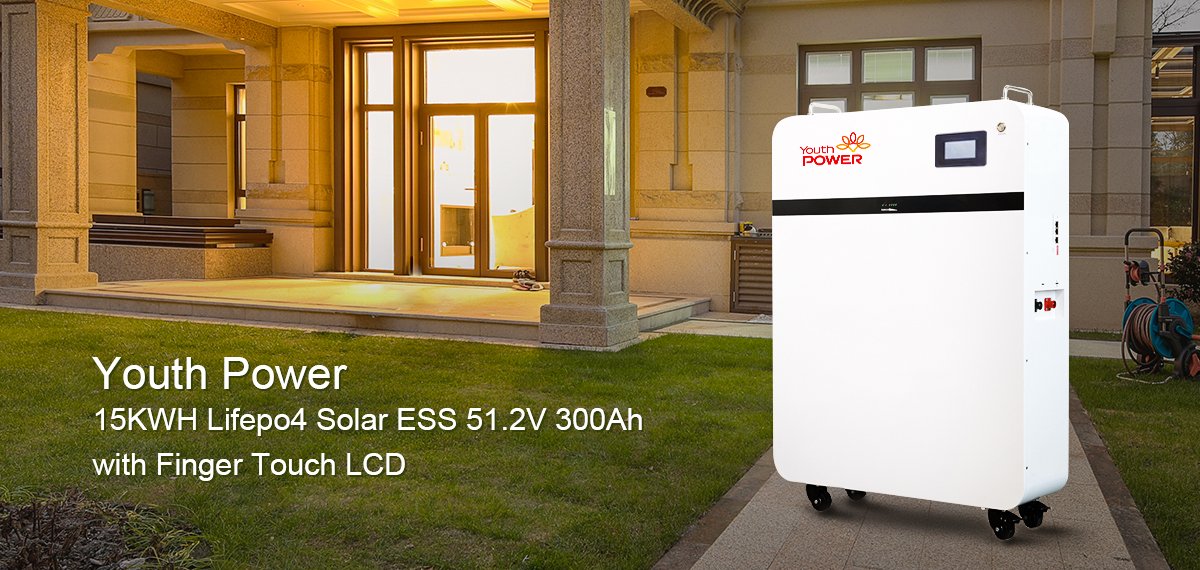

300ah lithium battery 15KWH Lifepo4 Solar storage 51.2V ESS
Product Specifications
Looking for a lightweight, non-toxic, and maintenance-free energy storage solution as your home solar battery?
Youth Power deep-cycle Lithium Ferro Phosphate (LFP) batteries are optimized with proprietary cell architecture, power electronics, BMS and assembly methods.
They are a drop-in replacement for lead acid batteries, and much safer, it is regarded as the best solar battery bank with affordable cost.
LFP is the safest, most environmentally chemistry available.
They are modular, lightweight and scalable for installations.
The batteries provide power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.
Enjoy easy installation and cost with Youth Power Home SOLAR WALL BATTERY.
We are always ready to supply the first-class products and meet the various needs of the customers.
| Model No | YP51300-15KWH |
| Nominal Parameters | |
| Voltage | 51.2V |
| Material | Lifepo4 |
| Capacity | 300Ah |
| Energy | 15KwH |

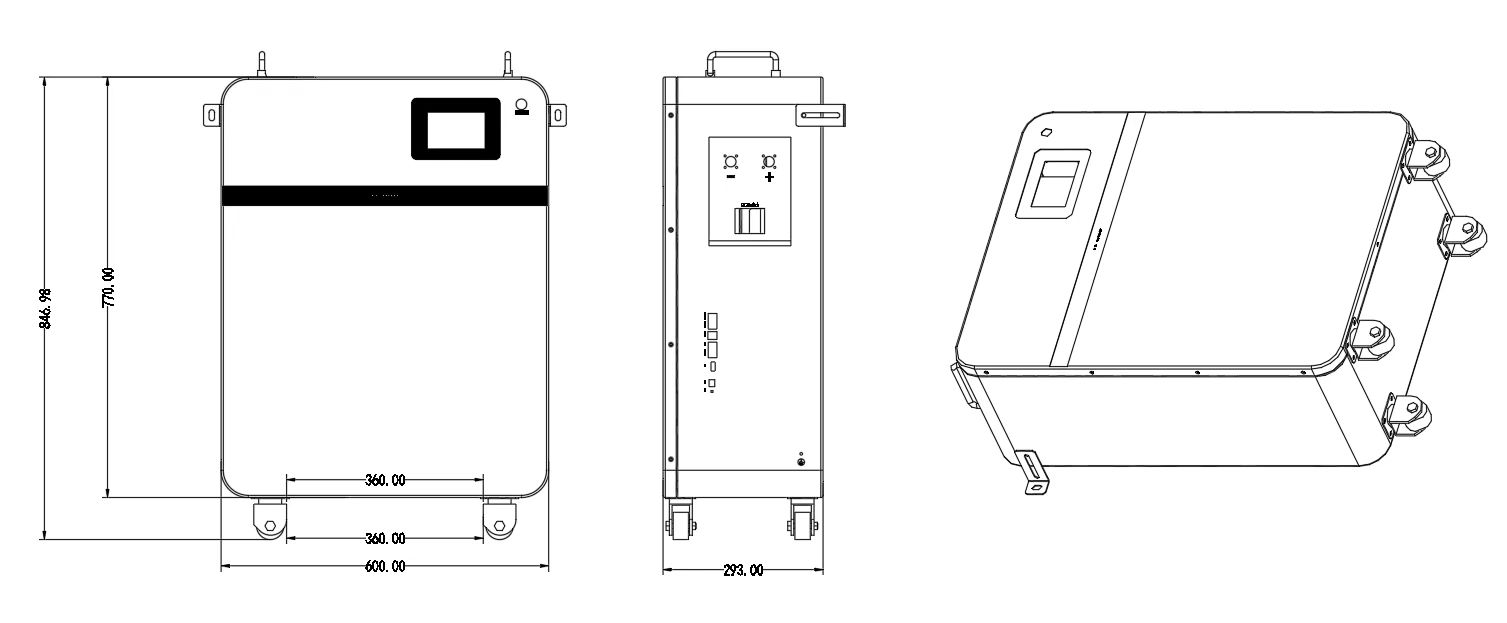

| Dimensions (L x W x H) | 600x846x293 mm |
| Weight | 158 kg |
| Basic Parameters | |
| Life time(25° C) | Expected Life time |
| Life cycles(80% DOD, 25° C) | 6000 Cycles |
| Storage time / temperature | 5 months @ 25° C; 3 months @ 35° C; 1 month @ 45° C |
| Operation temperature | ﹣20° C to 60° C @60+/-25% Relative Humidity |
| Storage temperature | 0° C to 45° C @60+/-25% Relative Humidity |
| Lithium Battery Standard | UL1642(CelI), IEC62619, UN38.3, MSDS, CE-EMC |
| Enclosure protection rating | IP21 |
| Electrical Parameters | |
| Operation voltage | 51.2 Vdc |
| Max. charging voltage | 58 Vdc |
| Cut-off-Discharge Voltage | 46 Vdc |
| Max, charging and discharging current | 100A Max. Charge and 200A Max. Discharge |
| Compatibility | Compatible with all standard off grid inverters and charge controllers. Battery to inverter output sizing keep 2:1 ratio. |
| Warranty Period | warranty 5-10 years |
| Remarks | Youth Power battery BMS must be wired in parallel only.Wiring in series will void the warranty. |

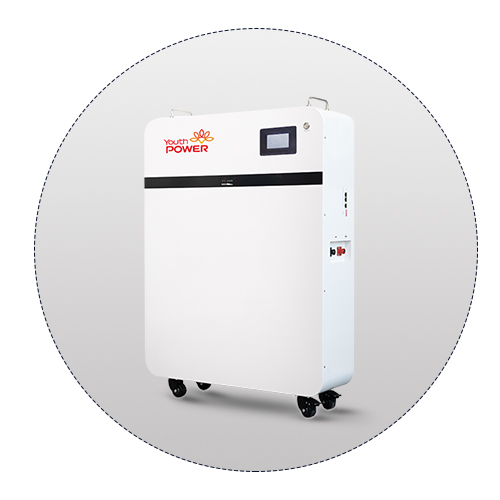

Product Details
Product Feature
- 01. Long cycle life - product life expectancy of 15-20 years
- 02. Modular system allows storage capactiy to be easily expandable as power needs increase.
- 03. Proprietary architecturer and integrated battery management system (BMS) - no additional programming, firmware, or wiring.
- 04. Operates at unparalleled 98% efficiency for more than 5000 cycles.
- 05. Can be rack mounted or wall mounted in a dead space area of your home / business.
- 06. Offer up to 100% depeth of discharge.
- 07. Non-toxic and non-hazardous recylcable materials - recycle at end of life.

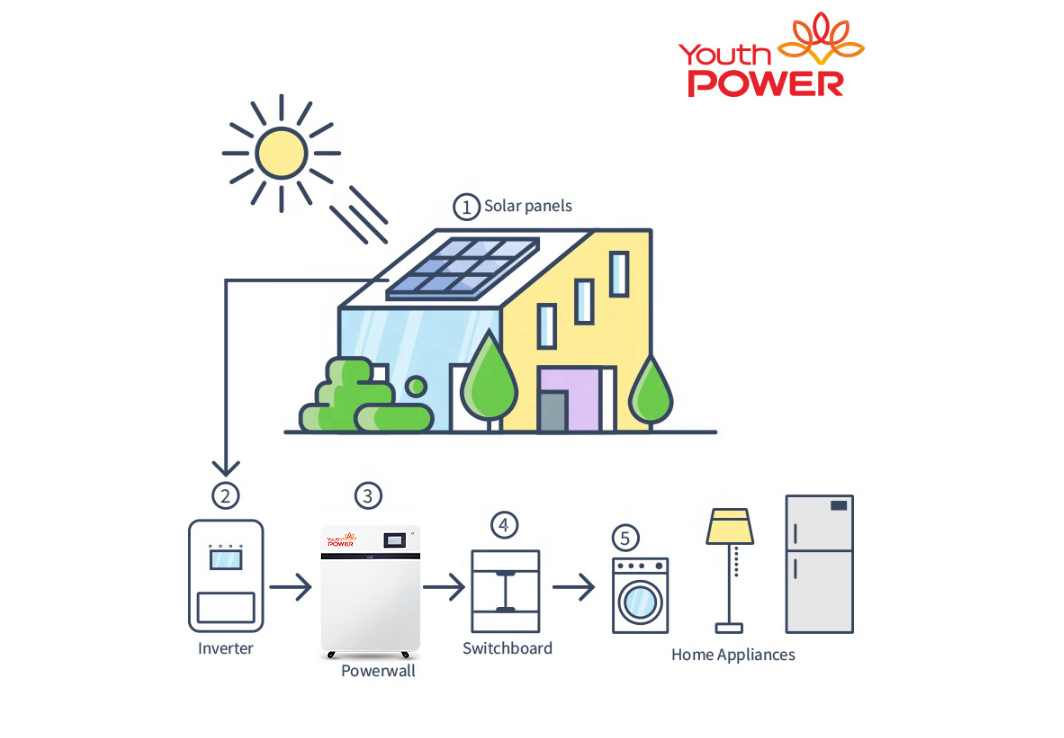

Product Application
Product Certification
YouthPOWER lithium home battery storage utilizes advanced lithium iron phosphate technology to deliver exceptional performance and superior safety. Each LiFePO4 battery storage unit has received various international certifications, including MSDS, UN38.3, UL1973, CB62619, and CE-EMC. These certifications verify that our batteries meet the highest quality and reliability standards globally. In addition to delivering outstanding performance, our batteries are compatible with a wide range of inverter brands available on the market, providing customers with greater choice and flexibility. We remain dedicated to providing reliable and efficient energy solutions for both residential and commercial solar energy systems, catering to the diverse needs and expectations of our customers.

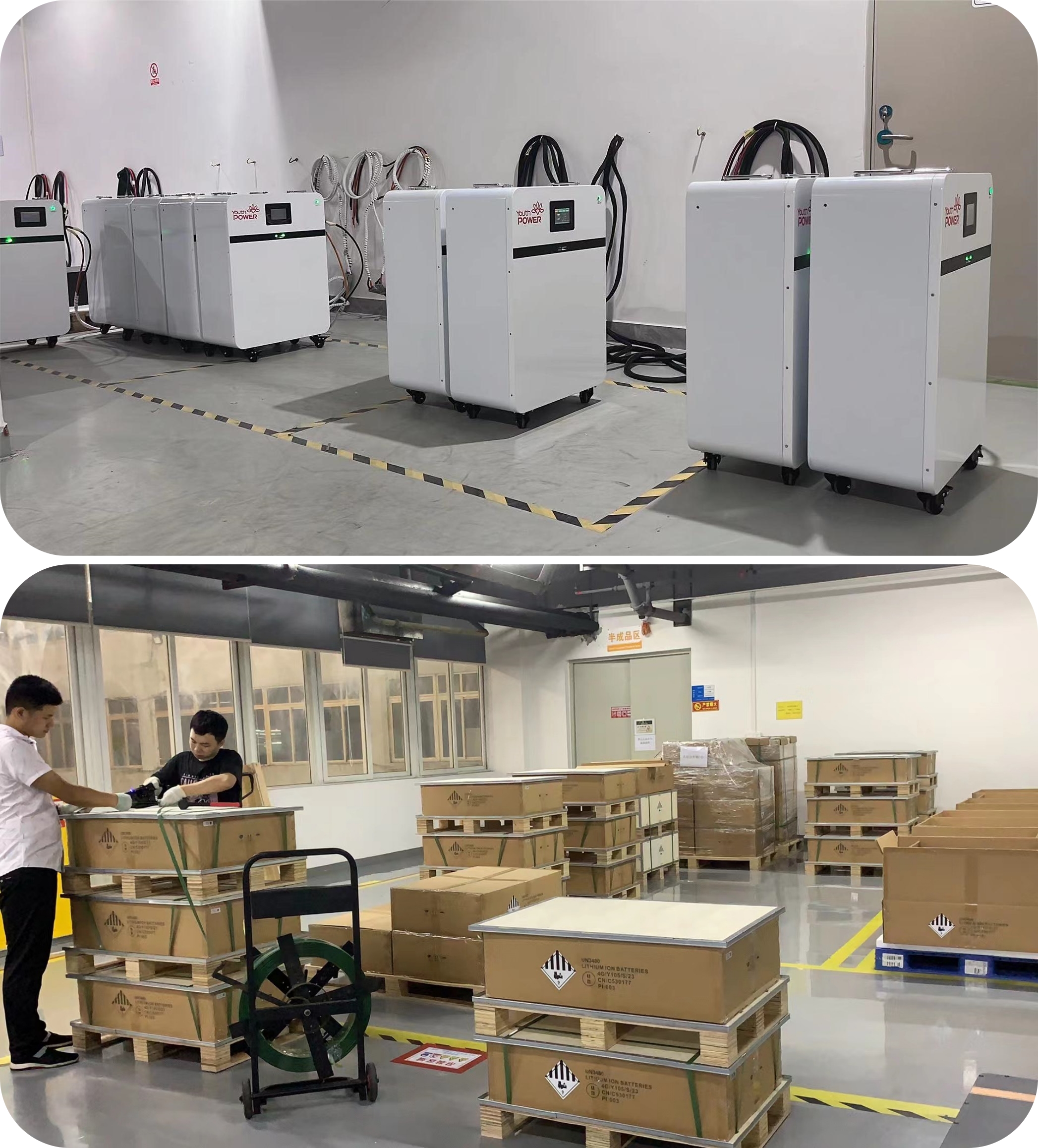

Product Packing
Our other solar battery series：High voltage batteries All In One ESS.
YouthPOWER lithium batteries are guaranteed to be of high quality, as we test them before packaging and delivering them to our clients. At YouthPOWER, we strictly follow shipping packaging standards to ensure the flawless condition of our 20kWH-51.2V 300Ah Lifepo4 battery during transit. Each battery is carefully packaged with multiple layers of protection to effectively protect against any potential physical damage. Our efficient logistics system ensures prompt delivery and timely receipt of your order.
- • 1 unit / safety UN Box
- • 1 unit / Pallet
- • 20' container : Total about 78 units
- • 40' container : Total about 144 units
Lithium-Ion Rechargeable Battery

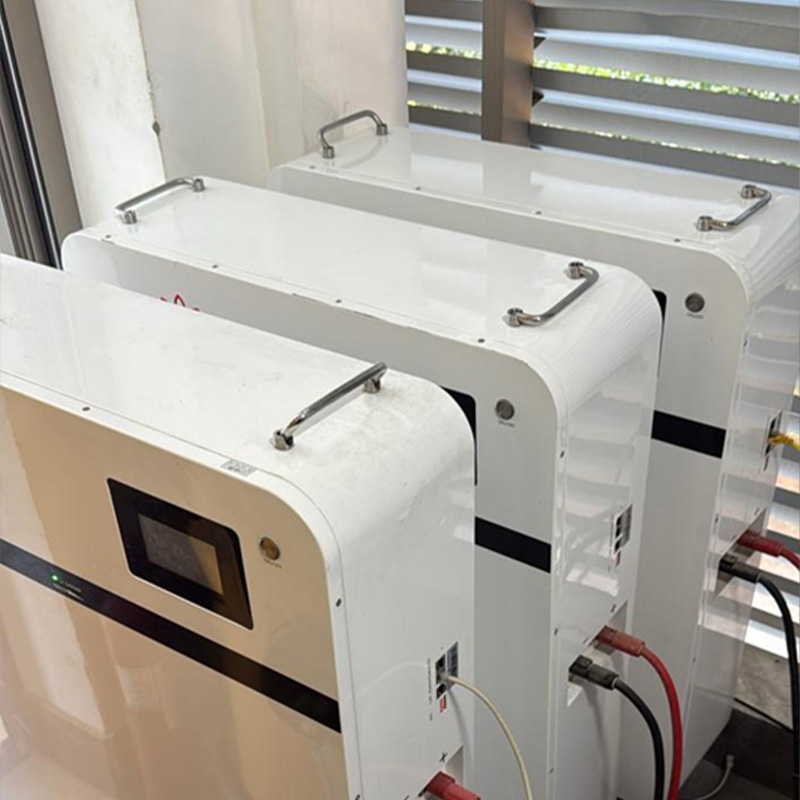

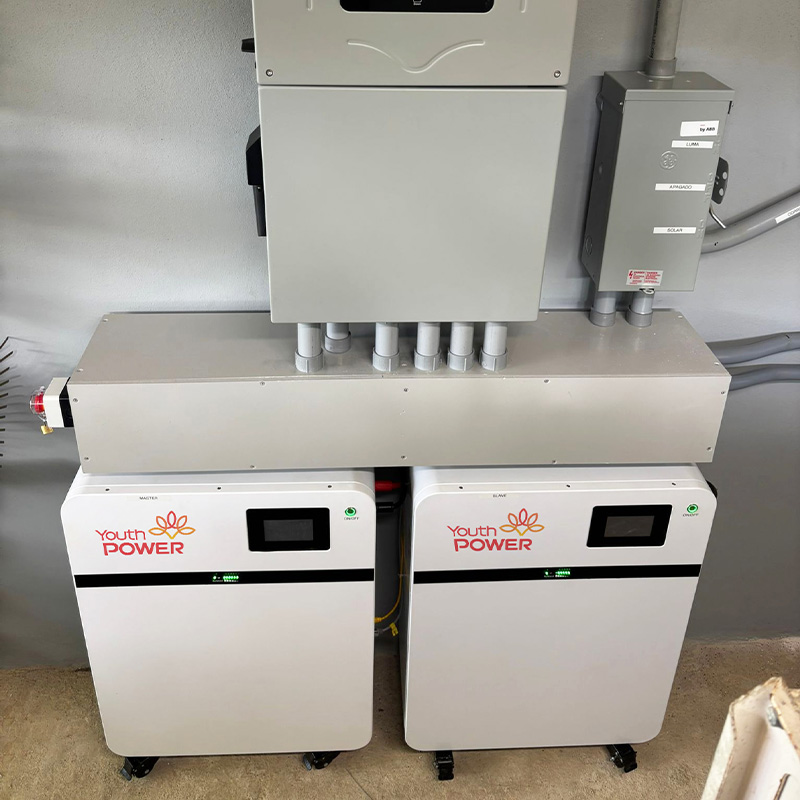

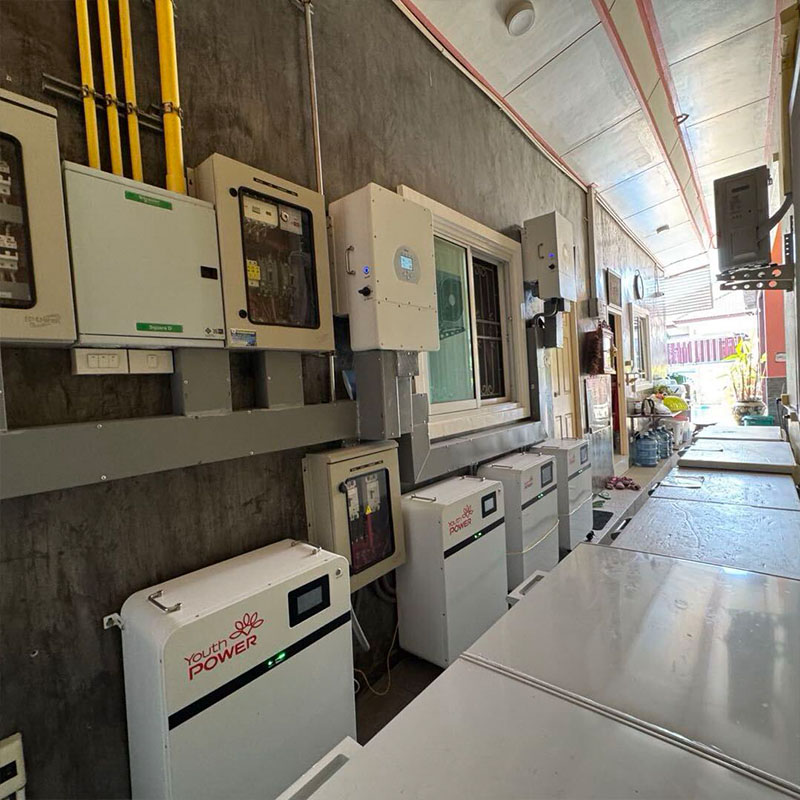

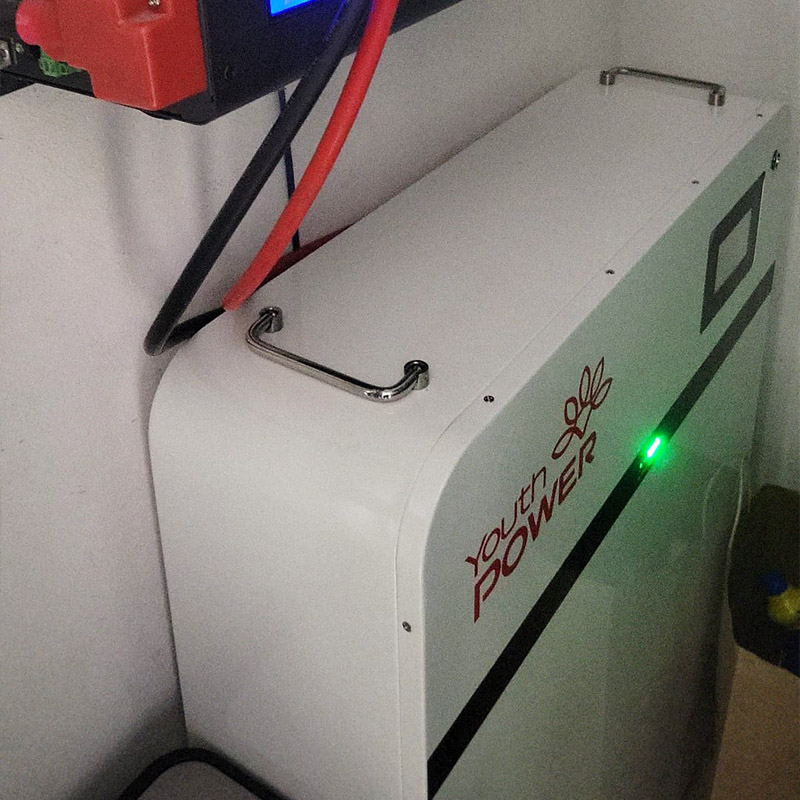

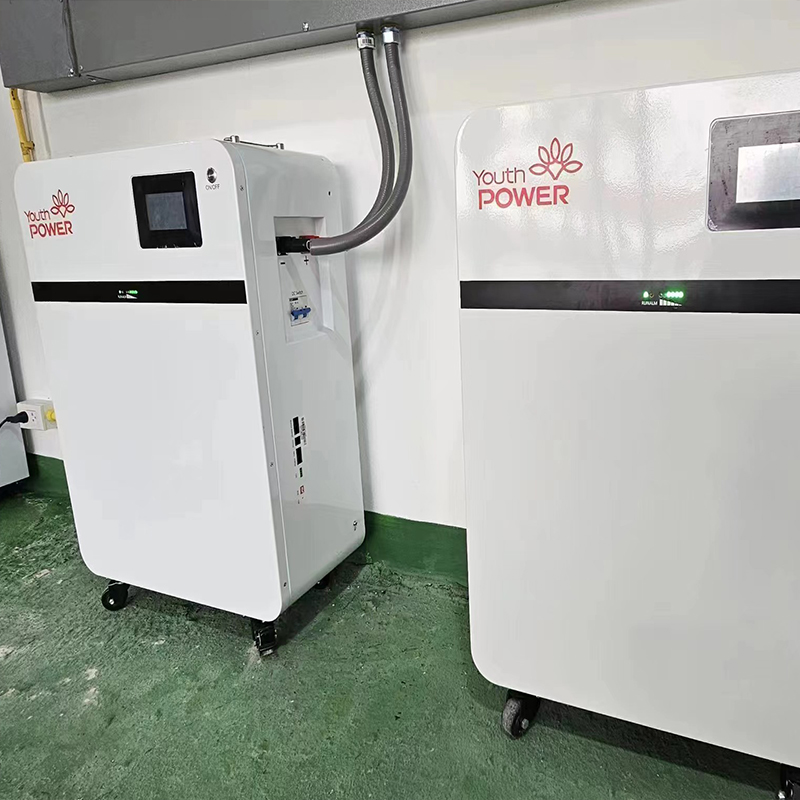

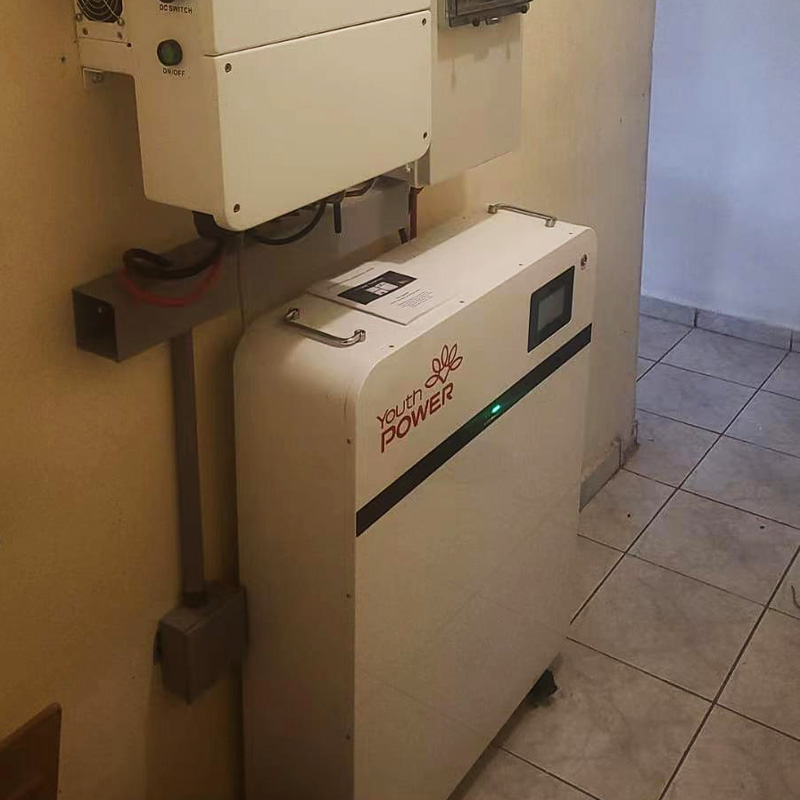

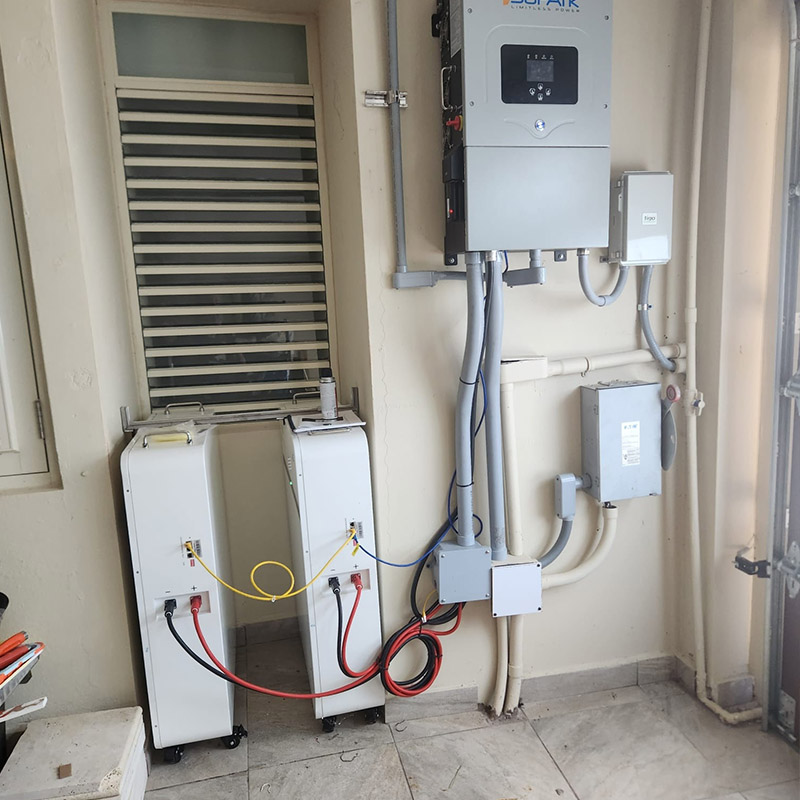

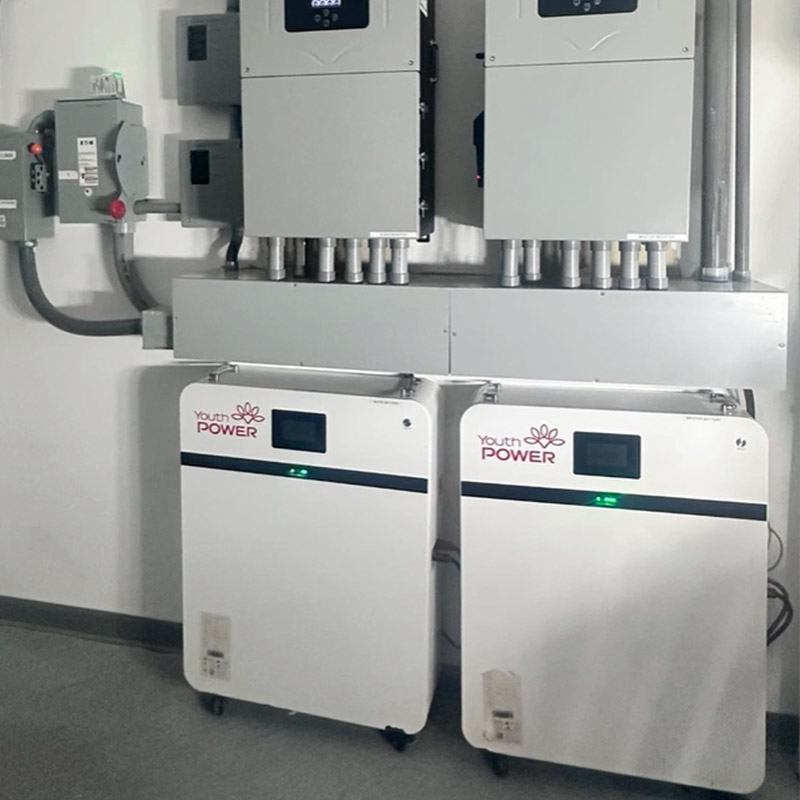

Projects
FAQ
What is the warranty on YouthPOWER batteries?
YouthPOWER offers a 10-year full warranty on all its components. This means that your investment is protected for 10 years or 6,000 cycles, whichever comes first.
How to maintain and maintain lithium solar batteries？
In recent years, with its light weight, environmental protection and long service life, lithium solar batteries have become more and more popular, especially after many first-tier cities have released the legal license of electric vehicles, the lithium solar batteries of electric vehicles have gone crazy again. Once, but many small partners do not pay attention to daily maintenance, which often greatly affects their life cycle.
What is deep cycle battery?
Eep Cycle battery is a kind of battery that focused on deep discharge and charge performance.
In the traditional concept, it usually refers to lead-acid batteries with thicker plates, which are more suitable for deep discharge cycling. It includes Deep Cycle AGM Battery, Gel Battery, FLA, OPzS, and OPzV battery.
