10kWh 51.2V 48V 200Ah LiFePO4 Battery

  • facebook
  • linkedin
  • twitter
  • youtube
  • instagram
  • whatsapp

YouthPOWER LiFePO4 10kWh solar battery is a high-performance energy solution for residential solar power and backup. Using advanced Lithium Iron Phosphate (LiFePO4) technology, it delivers high energy density and a long lifespan, with up to 6000 charge cycles for minimal maintenance costs.

It is available in two battery configurations:

① 9.6kWh lithium battery 48V 200Ah

② 51.2V 200Ah 10.24kWh lithium battery

Available in two voltage options: 48V and 51.2V, this 10kWh battery backup with a 200Ah battery capacity provides a reliable 10kWh energy reserve for your home. It ensures a stable power supply and is ideal for solar battery backup systems, promoting eco-friendly self-consumption.

Item:YP48200-9.6KW V1 / YP51200-10.24KW V1


Product Detail

Product Tags

Product Specifications

48v 200ah lithium battery

Model No.

YP48200 -9.6KW V1

YP51200 -10.24KW V1

Voltage

48V/51.2V

Combination

15S4P/16S4P

Capacity

200AH

Energy

9.6KWH/10.24KWH

Weight

95kg

Chemistry

Lithium Ferro Phosphate (LiFePO4) Safest Lithium ion, No fire risk

BMS

Built-in Battery Management System

Connectors

Waterproof connector

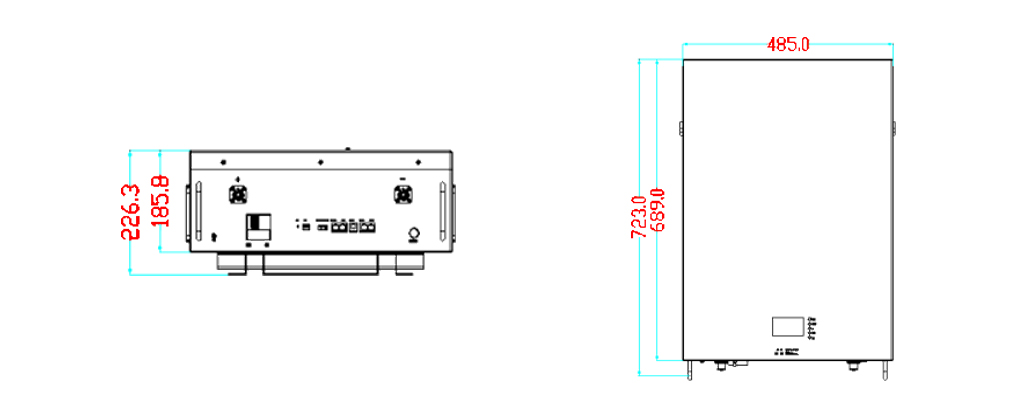

Dimension

680*485*180mm

Cycles (80% DOD)

6000 cycles

Depth of Discharge

Up to 100%

Life Time

10 years

Standard Charge

20A

Storage Discharge

20A

Maximum Continuous Charge

100A

Maximum Continuous Discharge

100A

Operation Temperature

Charge: 0-45℃, Discharge: -20~55 ℃

Storage Temperature

Keep at -20 to 65 ℃

Protection standard

Ip21

Cut Off Voltage

42V

Max. Charging Voltage

54V

Memory Effect

None

Maintenance

Maintenance free

Compatibility

Compatible with all standard off-grid inverters and charge controllers.
Battery to inverter output sizing keep 2:1 ratio.

Warranty Period

10 Years

Remarks

Youth Power 48V wall battery BMS must be wired in parallel only, wiring in series will void the warranty.

Allow max. 14 units in parallel to expand more capacity.

Product Details

48v lithium ion battery 200ah

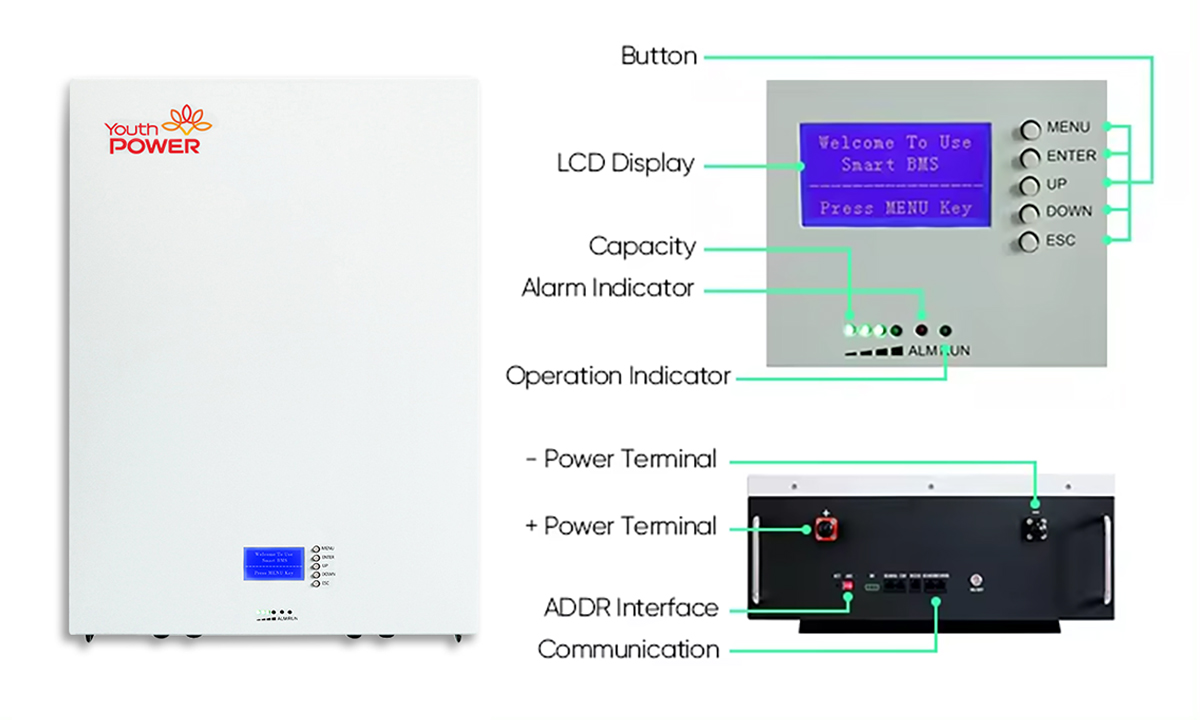

10kwh solar battery

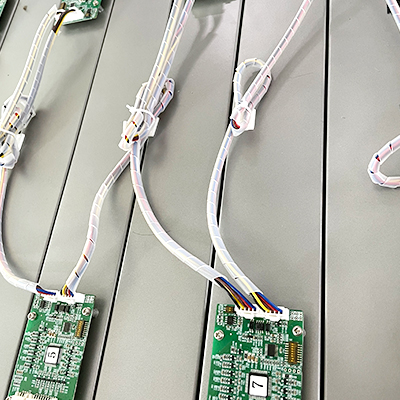

48v 200ah lifepo4 battery

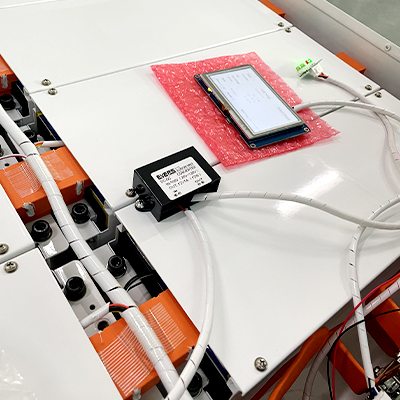

battery 48v 200ah
48v 200ah battery

Product Feature

The 10kWh 200Ah LiFePO4 battery delivers high performance, long lifespan, and energy efficiency, making it ideal for home ESS and small commercial ESS. Its compact, wall-mounted design and fast charging features ensure easy integration, while advanced safety certifications (UL, CE, IEC) provide reliable operation. This 10kWh battery pack offers a cost-effective solar solution to reduce energy costs and boost energy independence.

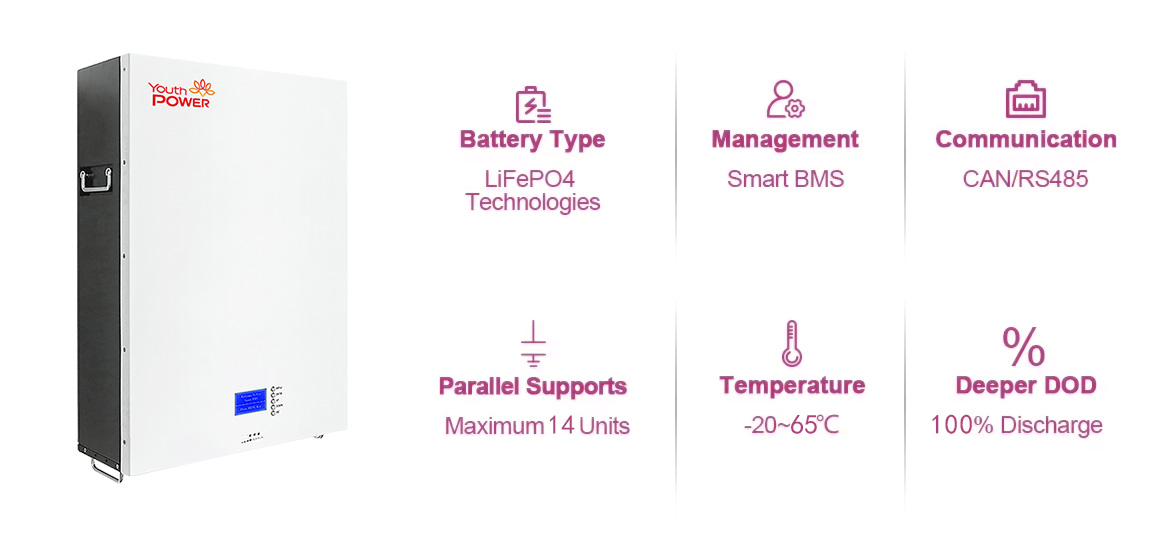

lithium battery 48v 200ah

1.Integrated and attractive design with a compact structure, saving space

2.Intelligent BMS control system to protect the battery

3.Flexible expansion: allow max. 14 units in parallel connection

4.Safety Certifications: UL1973, IEC62619, CE, MSDS, UN38.3

5.Compatible with most of the available inverters

6.Powerful Performance: LiFePO4 Technology, 6000+ cycles life

Product Applications

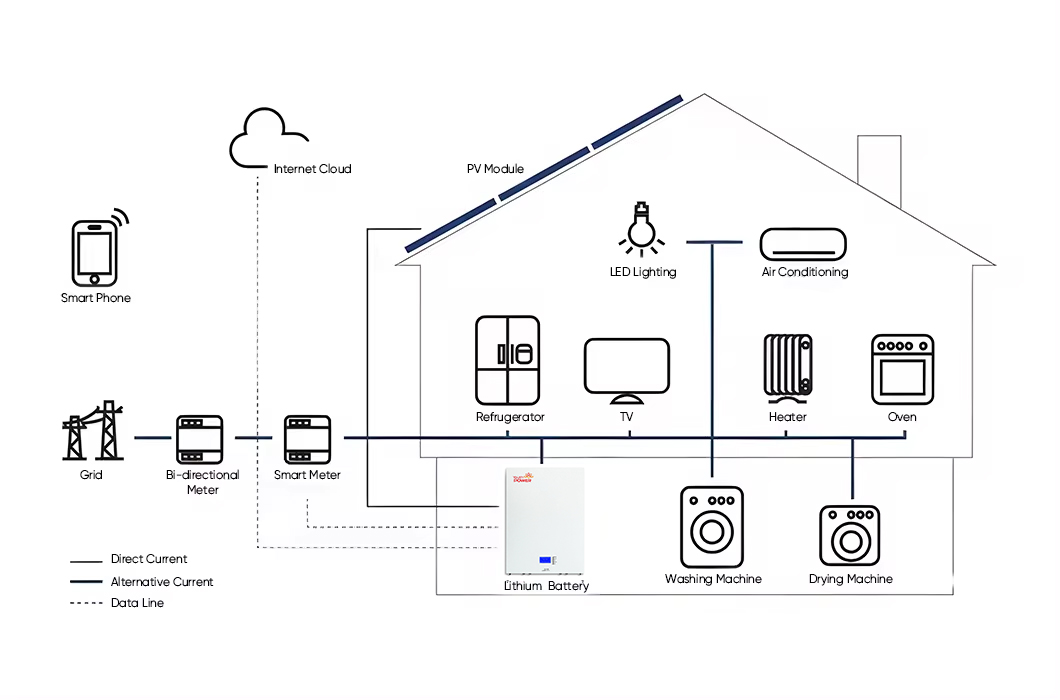

YouthPOWER LiFePO4 51.2 V 200 Ah lithium battery is the perfect solar energy storage solution for home energy storage systems, off-grid solar battery backup systems and electric power systems.

48v 200ah lithium ion battery

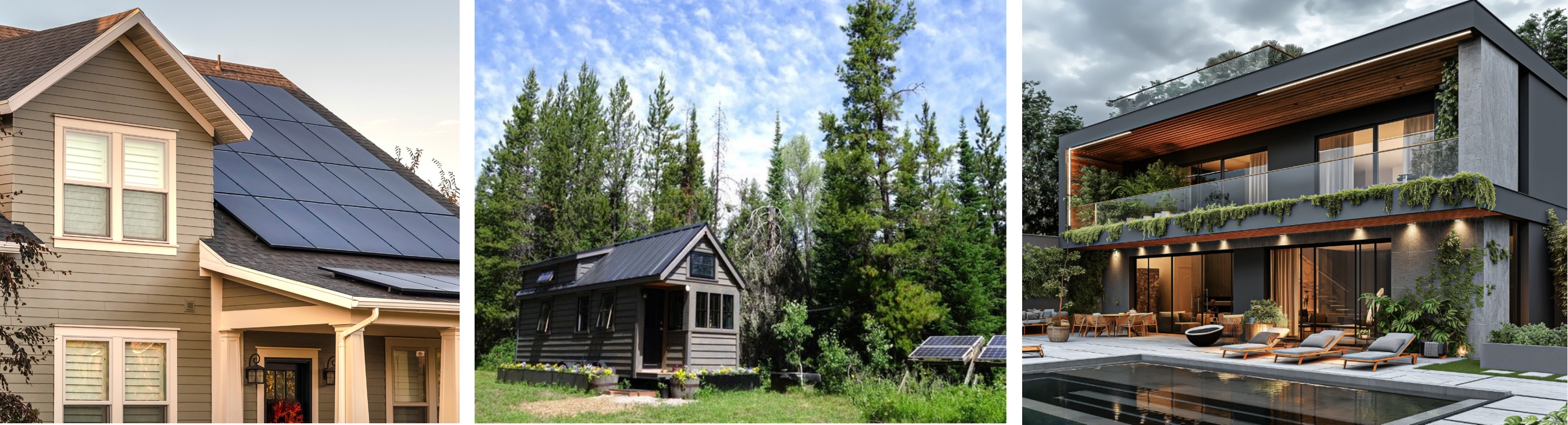

10kWh Battery Applications

Product Certification

YouthPOWER 10kWh lithium battery is designed for safety and high performance, meeting global quality standards. It is certified with key international approvals, including UL 1973IEC 62619, and CE, ensuring it meets strict safety and environmental regulations. The 48 volt LiFePO4 battery is also UN38.3 certified for safe transportation and comes with an MSDS (Material Safety Data Sheet) for proper handling and storage.

24v

Product Packing

battery packing

YouthPOWER powerwall 10kWh are securely packed with durable foam and strong cartons for safe transit. Each package is labeled with handling instructions and meets UN38.3 and MSDS standards for international shipping. With efficient logistics, we ensure fast, reliable delivery, so your 10kWh power wall battery arrives safely and ready for installation.

Packing Details:

• 1 unit / safety UN Box

• 6 units / Pallet

• 20' container : Total about 128

TIMtupian2
